PWM 40A Variator turatie motor controller HHO max 9-50V 2000W, Nou!

180 RON

PWM 40A Variator turatie motor controller HHO max 9-50V 2000W Nou!

Poate fi folosit pentru banda de alergat, banda transportoare, aer conditionat, etc.
Se poate folosi la motoare, consumatori rezistivi, letcon, ventilator, pompa apa sau surse de iluminat (leduri sau becuri) cu consum nominal de 20 A.

12V 24V 36V 48V 40A 2000W

XY-L-1240 DC Motor Speed Controller provides variable speed capability for DC motor.
Adjustable speed range is 5%-100%.
Output Power : 0.01-2000W(max).
12V:480W(max);
24V:960W(max) ;
36V:1440W(max);
50V:2000W(max)
The use of ambient environment temperature is -20C to 40C

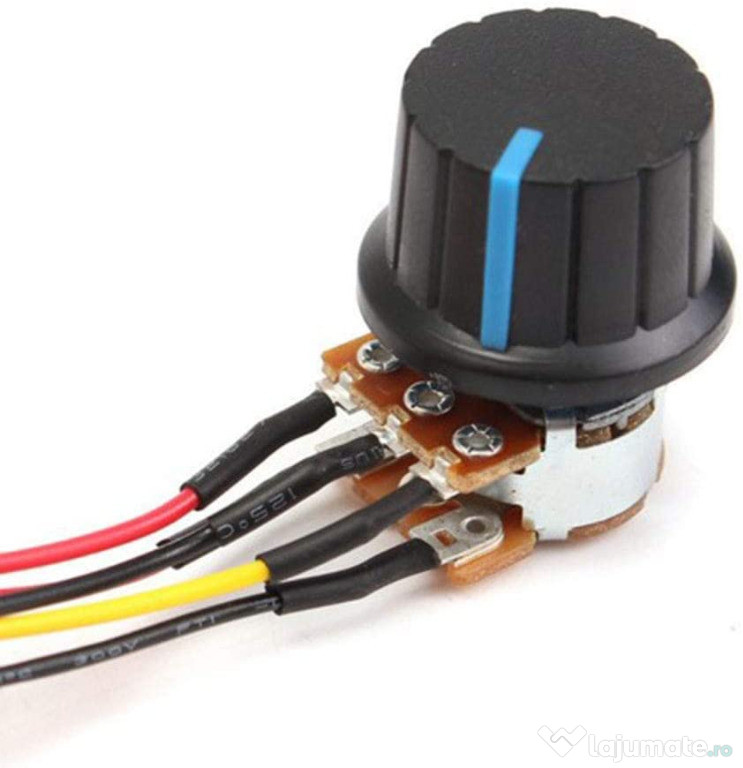

Potentiometer with switch function.

Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.

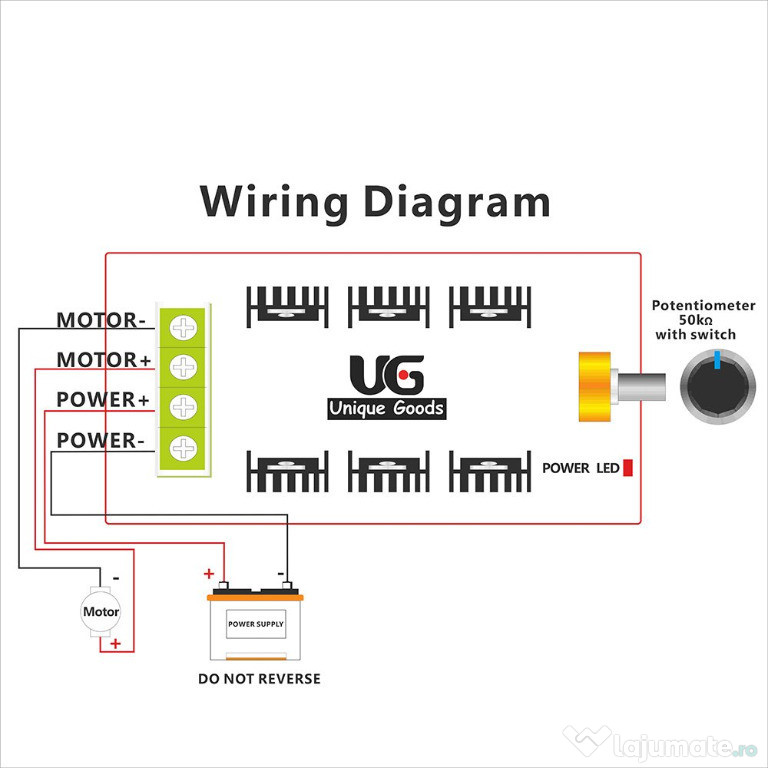

1.Connect wires refer to the “wiring diagram” (NO.6 picture).
(It is recommended to add an appropriately rated fuse inline with the positive supply.)
2. Turn on the power. The LED lights, the power is OK.
3. Adjust the potentiometer.

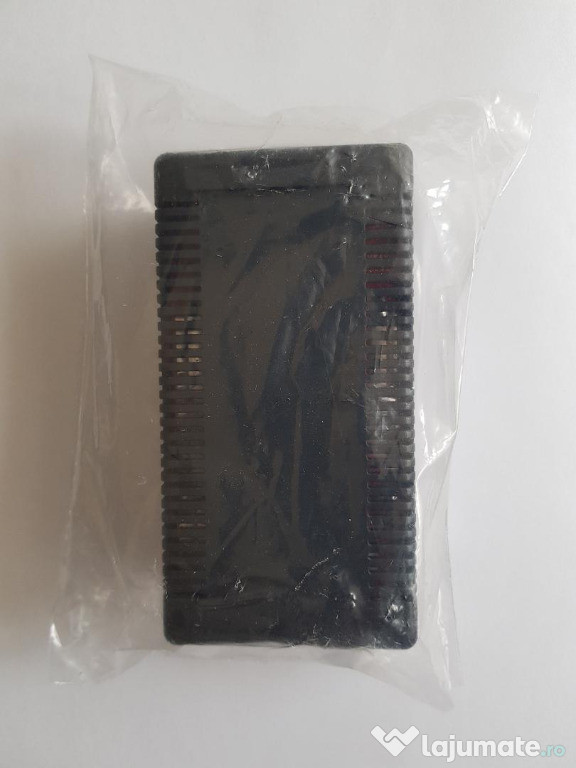

Produs nou ambalat!
